Description
-
Model No.: SZB250BAB21
-
Input Voltage: three phase 346~480V
-
Input Current: 3 x 250A
-
Output Voltage: three-phase 346-480V
-
Outlet: 21 ports of 4-pin SA2-30 sockets
-

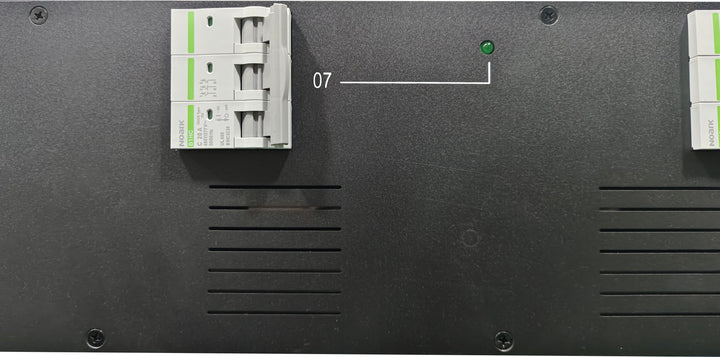

Each port has Noark 3P 20A circuit breaker
-
LED Indicator for each port
-
Three full length copper busbars for L1/L2/L3
-
Remote monitor and control ON/OFF of each port
-
Remote monitor input and per port current, voltage, power, PF, KWH
-

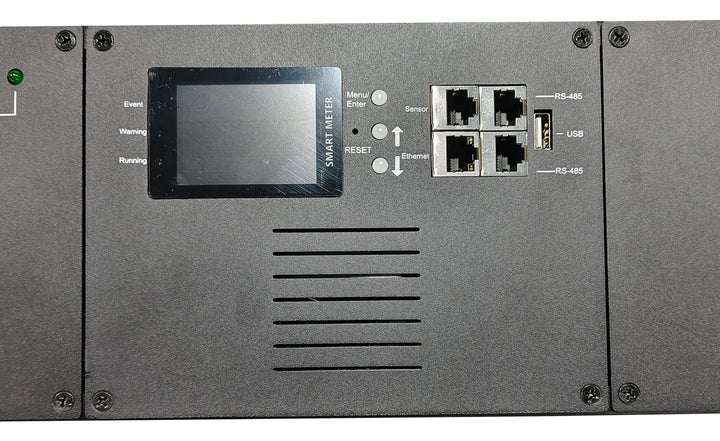

Onboard LCD display with menu control
-
Ethernet/RS485 interface, support HTTP/SNMP/SSH2/MODBUS
Additional Information
| Dimensions |
4663x140x93 mm |
|---|---|
| Model No. |
SZB250BAB21 |
