Description
-
Model No.: DZA350DAA48
-
Input: 346~415V, 3 x 350A
-
Output: 200~240VAC, each port 20A
-

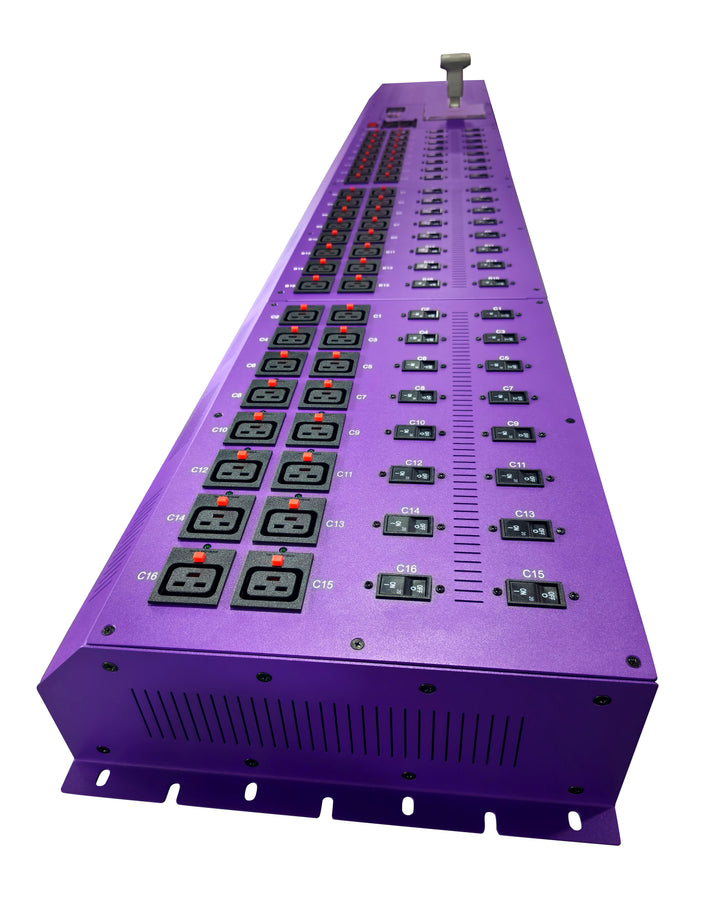

Outlet: 48 ports of C19 sockets
-

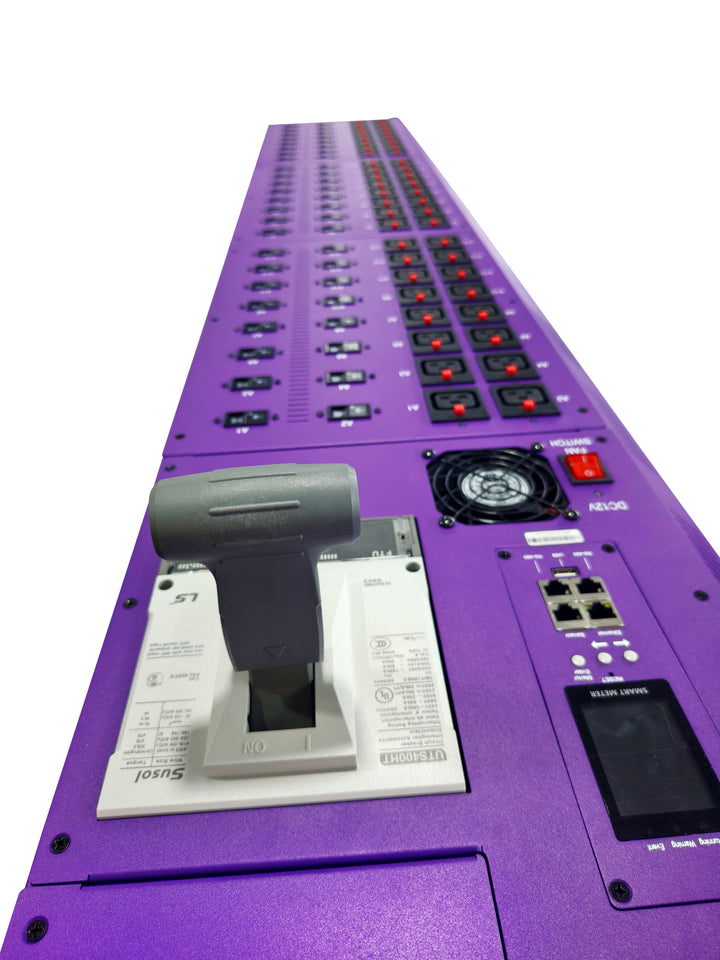

Integrated 350A main circuit breaker
-

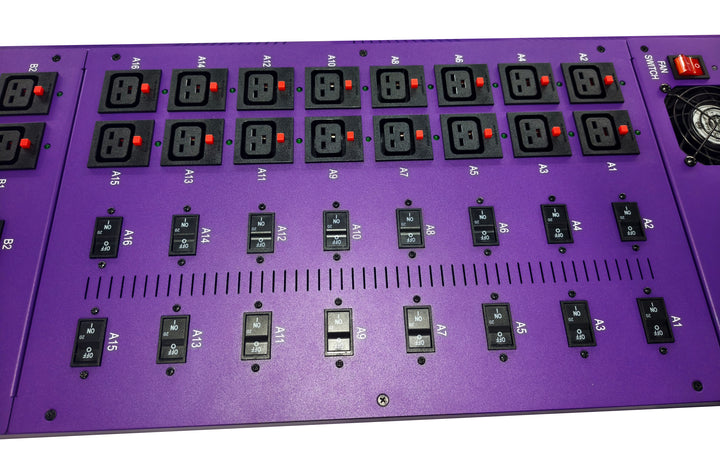

Each port has a 1P 20A circuit breaker
-
Remote monitor and control ON/OFF of each port
-
Remote monitor input current, voltage, power, power factor, KWH
-
Smart Meter with Ethernet/RS485 interface, support HTTP/SNMP/SSH2/MODBUS
-
Onboard LCD display with menu control and local monitoring
Additional Information
| Dimensions |
2183.6*350*125 mm |
|---|---|
| Model No. |
DZA350DAA48 |
