Description

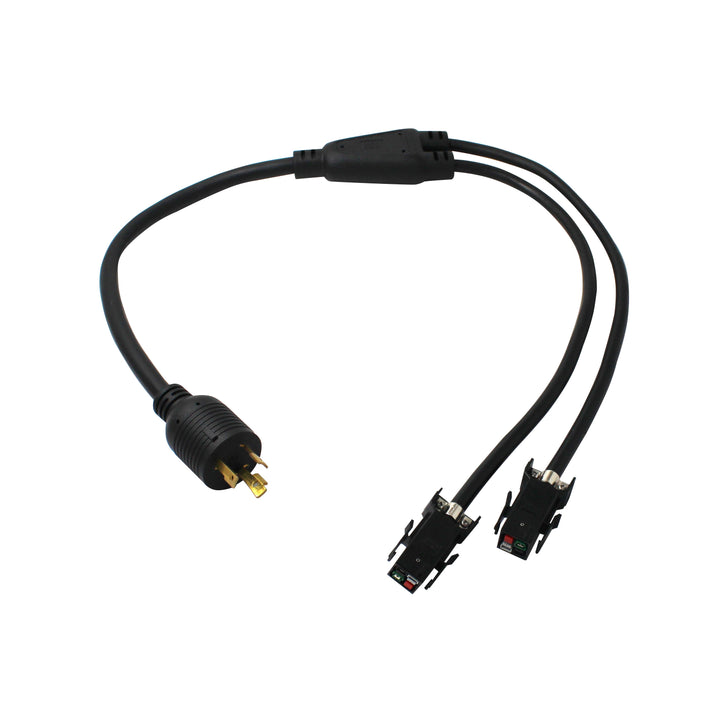

POWER CABLE FOR Y CORD SPLITTERS
L7-30P male plug with SJTW 10AWG*3C wire to 2*PA45 ANEN power connectors with SJTW 12AWG*3C
Length: 3 FT. Gauge: 10AWG/12AWG Wires: 3 Jacket type: SJTW Color: Black

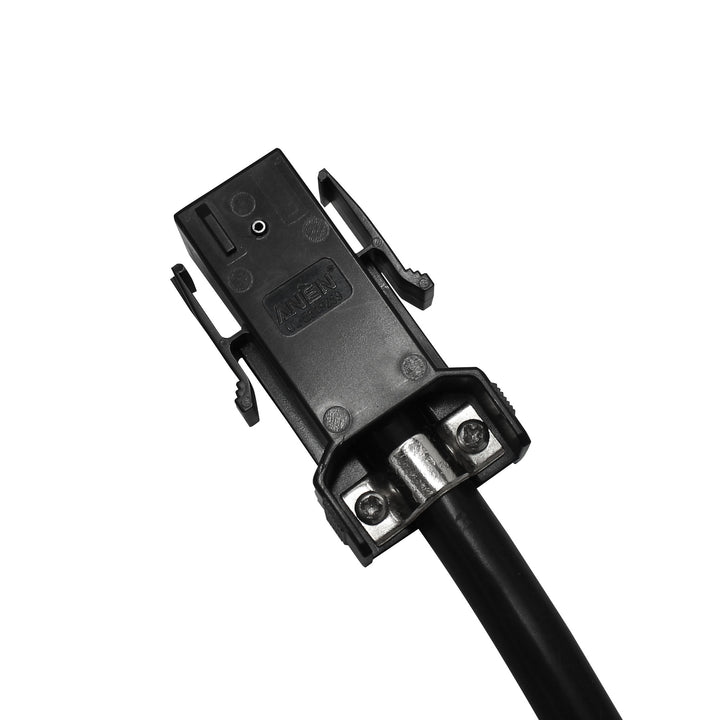

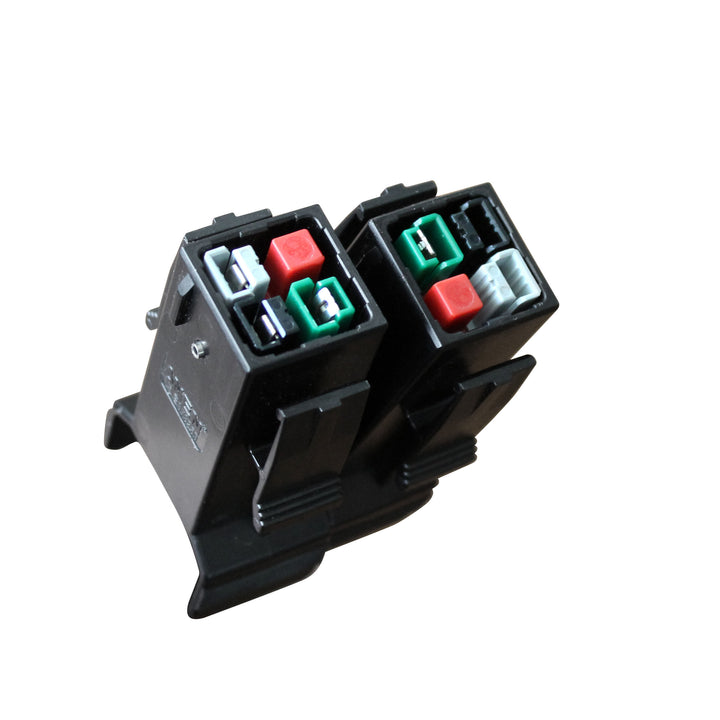

- Connector A: ANEN PA45 socket
- Connector B: Nema L7-30P
- Color: Black
-
All wires and components are rated for at least 300V • The L7 twist lock connectors should be rated at 30A or greater • the single wire is 10 AWG, and the two “legs” are 12 AWG
